Jasper Alblas
TryHackMe: Splunk – The Basics Walkthrough (SOC Level 1)
Welcome to this walkthrough of the Splunk: The Basics Room on TryHackMe. In this room we will use to use Splunk, and how this product, which is one of the leading SIEM solutions in the market, is used by SOC analysts around the world to investigate logs.
Room URL:
https://tryhackme.com/room/splunk101
I am making these walkthroughs to keep myself motivated to learn cyber security, and ensure that I remember the knowledge gained by these challenges on HTB and THM. Join me on learning cyber security. I will try and explain concepts as I go, to differentiate myself from other walkthroughs.
Table of Contents
Task 1: Introduction
Splunk is one of the leading SIEM solutions in the market. It allows users to collect, analyze, and correlate network and machine logs in real time. In this room, we will explore the basics of Splunk and its functionalities, and how it provides better visibility of network activities and helps speed up detection.
Learning Objectives
This room covers the following learning objectives:
- Understanding the components of Splunk
- Exploring some available options in Splunk
- Understanding log ingestion in Splunk
- Practically ingesting some Logs in Splunk and analyzing them
Room Prerequisites
If you are new to SIEM, please complete the Introduction to SIEM room.
Questions
Continue with the next task.
Answer: No answer needed
Task 2: Connect with the Lab
Before proceeding with the following tasks, start the attached virtual machine by clicking the Start Machine below. Start Machine
The machine may take up to 3-5 minutes to start. After the machine starts, the Splunk Instance can be accessed at http://MACHINE_IP either directly on the AttackBox or via the TryHackMe VPN.
Questions
Connect with the lab.
Answer: No answer needed
Task 3: Splunk Components
Splunk has three main components: Forwarder, Indexer, and Search Head. These components work together to help us search and analyze the data. These components are explained below:
Splunk Forwarder
Splunk Forwarder is a lightweight agent installed on the endpoint intended to be monitored, and its main task is to collect the data and send it to the Splunk instance. It does not affect the endpoint’s performance as it takes a few resources to process. Some of the key data sources are:
- Web server generating web traffic.
- Windows machine generating Windows Event Logs, PowerShell, and Sysmon data.
- Linux host generating host-centric logs.
- Database generating DB connection requests, responses, and errors.
The forwarder collects the data from the log sources and sends it to the Splunk Indexer.
Splunk Indexer
Splunk Indexer plays the main role in processing the data it receives from forwarders. It parses and normalizes the data into field-value pairs, categorizes it, and stores the results as events, making the processed data easy to search and analyze. Now, the data, which is normalized and stored by the indexer, can be searched by the Search Head.
Search Head
Splunk Search Head is the place within the Search & Reporting App where users can search the indexed logs, as shown below. The searches are done using the SPL (Search Processing Language), a powerful query language for searching indexed data. When the user performs a search, the request is sent to the indexer, and the relevant events are returned as field-value pairs..
Questions
Which component is used to collect and send data over the Splunk instance?
The Splunk Forwarder is installed on endpoints, which in turn collects data, and afterwards sends it to the Splunk instance.
Answer: Forwarder
Task 4: Navigating Splunk
When you access Splunk, you will see the default home screen as shown below:
Let’s look at each section of this home screen.
Splunk Bar
The top panel is the Splunk Bar. In the Splunk Bar, we have the following options available:
- Messages: View system-level notifications and messages.
- Settings: Configure Splunk instance settings.
- Activity: Review the progress of search jobs and processes.
- Help: View tutorials and documentation.
- Find: Search across the App.
The Splunk Bar, allows users to switch between installed Splunk apps instead of using the Apps panel.
Apps Panel
Next is the Apps Panel. This panel shows the apps installed for the Splunk instance. The default app for every Splunk installation is Search & Reporting.
You can also switch between the Splunk Apps directly from the Splunk Bar, as shown below, without using the Apps Panel.
Explore Splunk
The next section is Explore Splunk . This panel contains quick links to add data to the Splunk instance, add new Splunk apps, and access the Splunk documentation.
Splunk Dashboard
The last section is the Home Dashboard. By default, no dashboards are displayed. You can choose from a range of dashboards readily available within your Splunk instance. You can select a dashboard from the dropdown menu or by visiting the dashboards listing page.
You can also create dashboards and add them to the Home Dashboard. The dashboards you create can be viewed separately from the other dashboards by clicking on the Yours tab.
Please review the Splunk documentation on Navigating Splunk here.
Questions
In the Add Data tab, which option is used to collect data from files and ports?
Make you started up a Splunk machine, and access its IP adress from the AttackBox or your machine on THMs VPN.

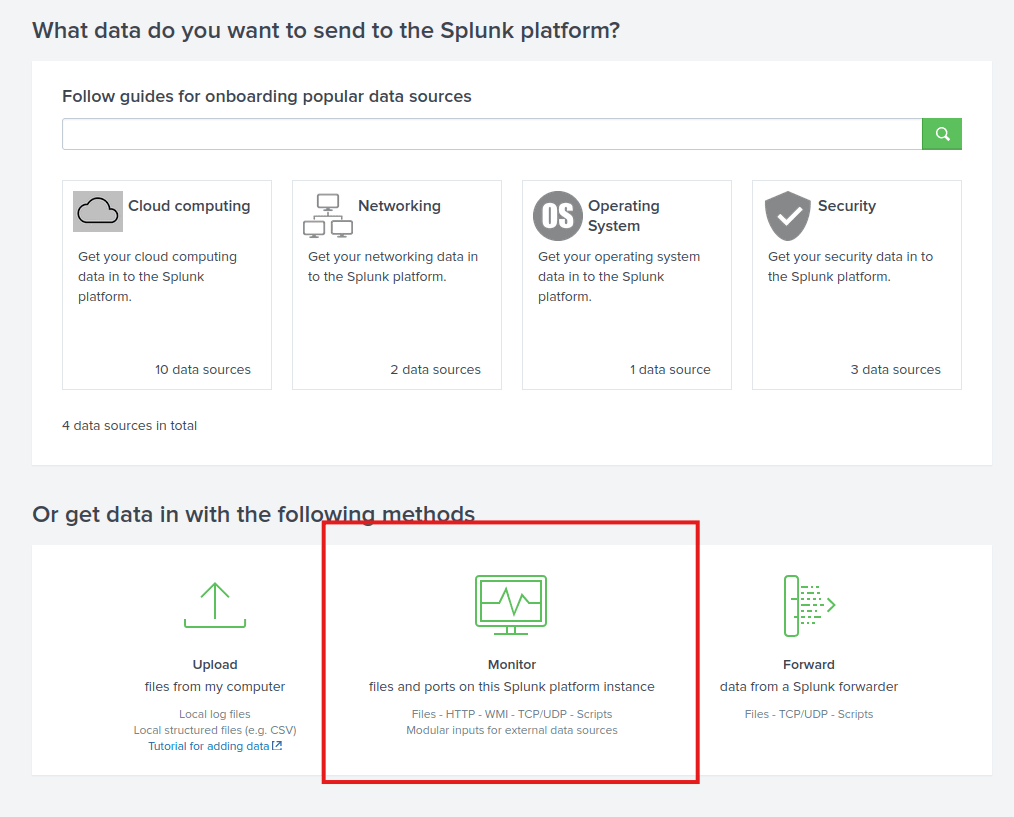

Now, press the add data tab and you will see the following menu:
Underneath the monitor option, we see the functionality to collect data from files and ports.
Answer: Monitor
Task 5: Adding Data
Splunk can ingest any data. According to the Splunk documentation, when data is added to Splunk, the data is processed and transformed into a series of individual events. The data sources can be event logs, website logs, firewall logs, etc. The data sources are grouped into categories.
Below is a chart listing from the Splunk documentation detailing each data source category.
In this task, we’re going to focus on VPN logs. We’re presented with the following screen when we click on the Add Data link on the Splunk home screen.
We will use the Upload Option to upload the data from our local machine.
Practical
Download the log file VPN_logs from the Download Task Files button in the room and upload it to the Splunk instance we started in Task #2. If you are using the AttackBox, the log file is available in the /root/Rooms/SplunkBasic/ directory.
To upload the data successfully, you must follow five steps, which are explained below:
- Select Source: Choose the Log file and the data source.
- Select Source Type: Select what type of logs are being ingested, e.g, JSON, syslog.
- Input Settings: Select the index where these logs will be dumped and the HOSTNAME to be associated with the logs.
- Review: Review all the configurations.
- Done: Complete the upload. Your data will be uploaded successfully and ready to be analyzed.
Questions
Upload the data attached to this task and create an index “VPN_Logs”. How many events are present in the log file?

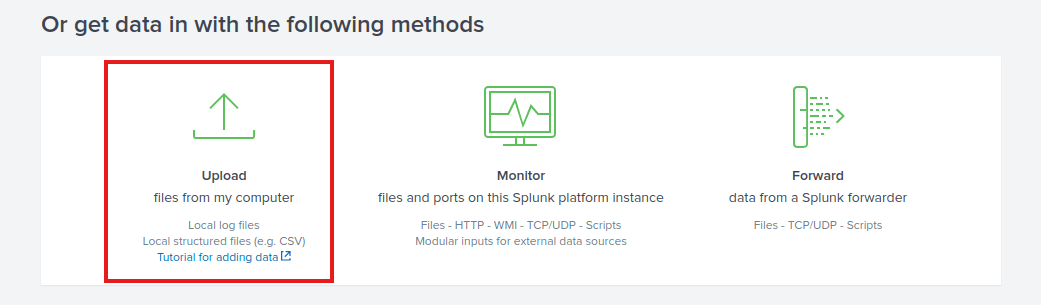

Press the upload method button:
Navigate to the files you downloaded, or find them at /root/Rooms/SplunkBasic/ on the AttackBox.

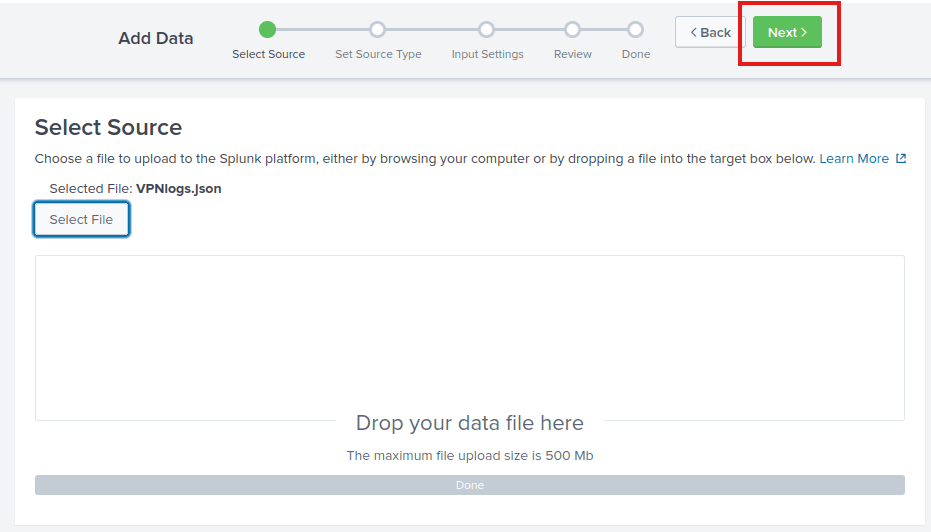

Now press next:

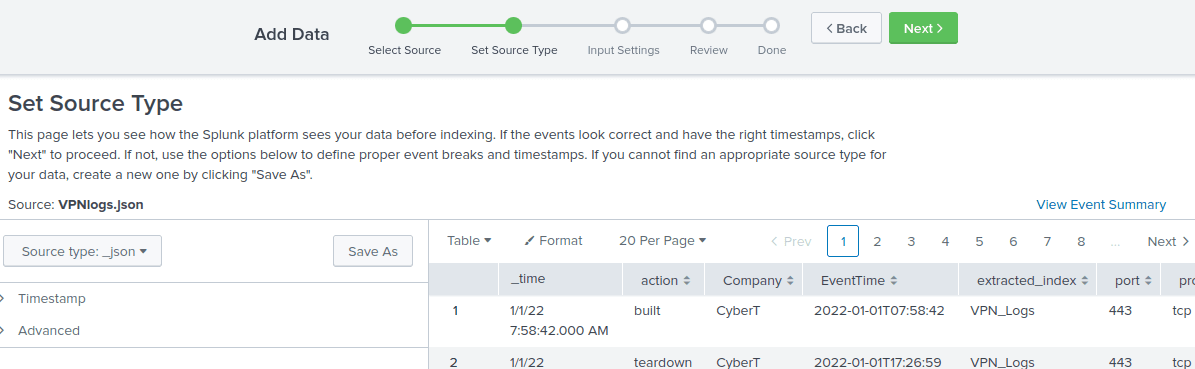

Now you have to select the source type, which is JSON. Press next again.

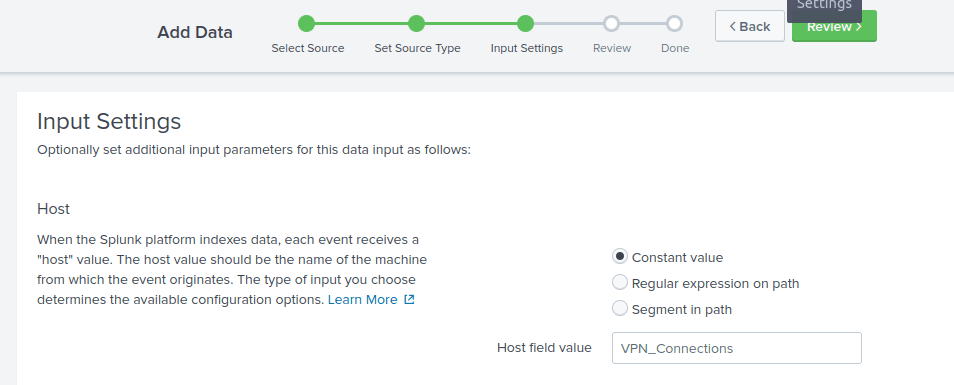

Now we have to enter a host field value, which should be similar to the name of the machine (host). Let’s enter VPN_Connections here.
Now, create a new index called VPN_Logs. Press next, check everything and press Submit. Finally, press Start Searching.

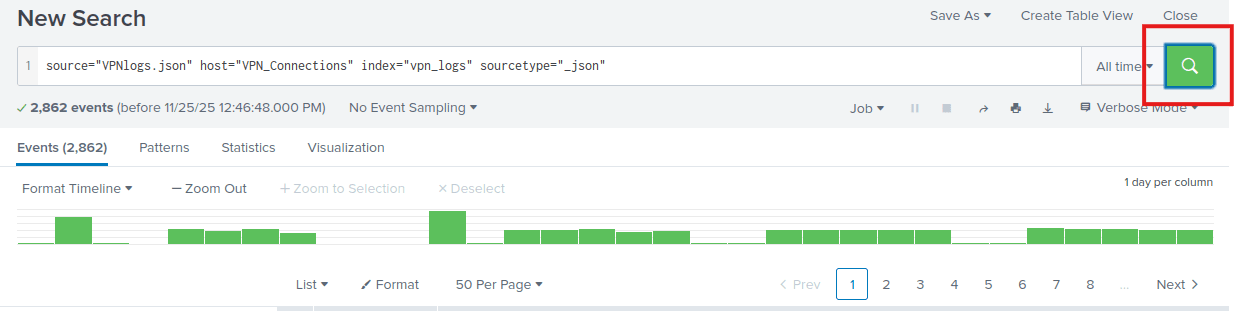

Now you come in the search screen. To see the correct number of events I have to press the search button once.
The number of events is 2862.
Answer: 2862
How many log events are captured by the user Maleena?

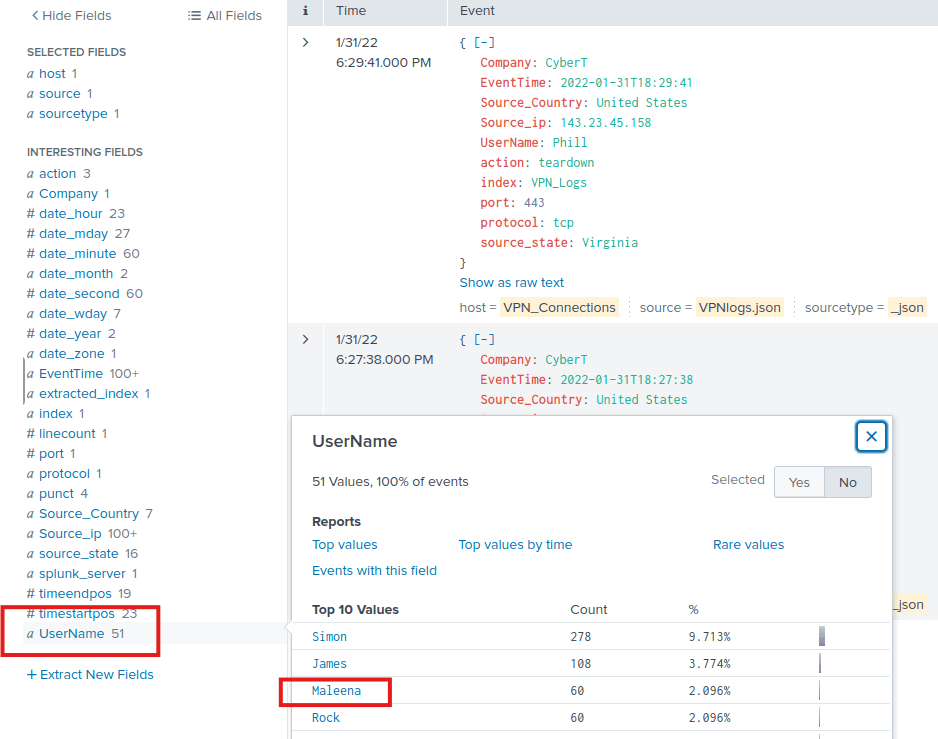

Great job. Now let’s find how many of these events are captured by Maleena. This is not that hard. Find the Username field on the left menu, and press Maleena.
Alternatively, you can enter the following in the search input field:
source=”VPNlogs.json” host=”VPN_Connections” index=”vpn_logs” sourcetype=”_json” UserName=Maleena
60 events should show up.
Answer: 60

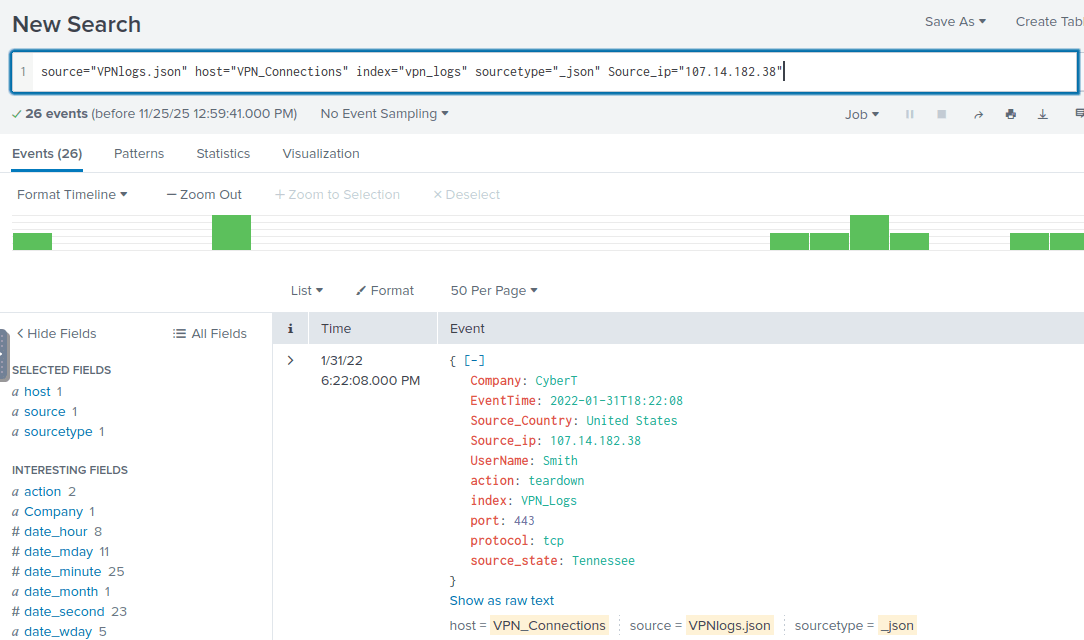

What is the username associated with IP 107.14.182.38?
If you look at the data rows, you can see that there is a field called Source_ip.
Make sure you removed the filter on Maleena, and press the source ip field. Select any of the IPs to see how to edit the input field. Now you can edit the IP address to sort on.
source=”VPNlogs.json” host=”VPN_Connections” index=”vpn_logs” sourcetype=”_json” Source_ip=”107.14.182.38″
Now you should see that the username associated to this IP address is Smith.
Answer: Smith

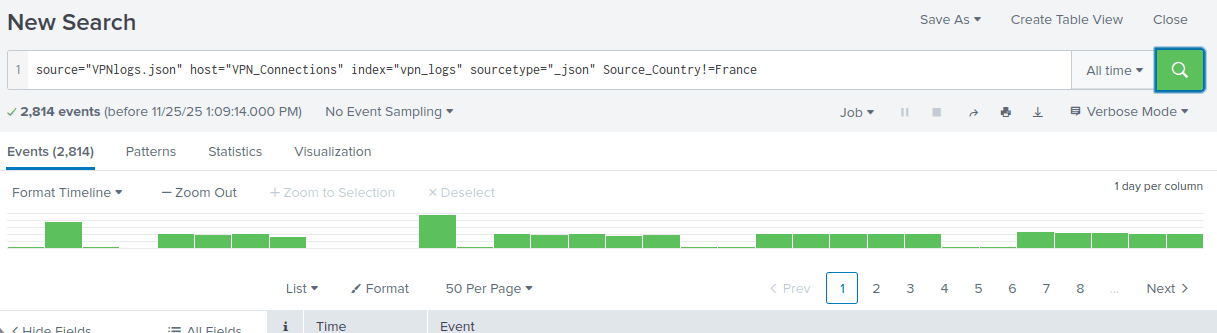

What is the number of events that originated from all countries except France?
The field we need to use here is called Source_Country.
Normally, if we were only interested in France we would use something like “Source_Country=France”, but to do the opposite we !=. The search field should look like this:
source=”VPNlogs.json” host=”VPN_Connections” index=”vpn_logs” sourcetype=”_json” Source_Country!=France
2814 events remain.
Answer: 2814

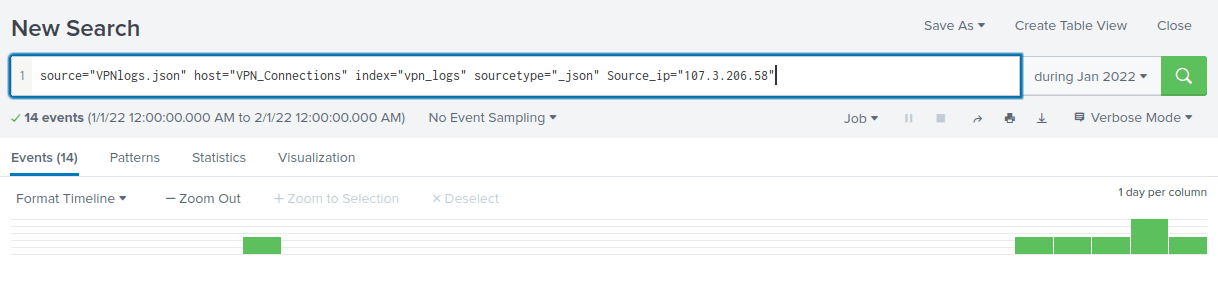

How many VPN events were associated with the IP 107.3.206.58?
I hope you are getting the grip of these. You should probably know now how to filter on a specific commands using the Splunk search language (SPL). Simply write:
source=”VPNlogs.json” host=”VPN_Connections” index=”vpn_logs” sourcetype=”_json” Source_ip=”107.3.206.58″
Answer: 14
Task 6: Conclusion
Well done! In this room, you learned about Splunk’s core components, explored the Splunk interface, and practiced uploading data to Splunk. You have gained the foundational knowledge of Splunk SIEM.
If you’d like to dig deeper, you can explore the following Splunk walkthrough and challenge rooms to understand how Splunk is effectively used in investigating incidents.
- Splunk: Exploring SPL
- Incident Handling with Splunk
- Investigating With Splunk
- Benign – Challenge
- PoshEclipse – Challenge
Questions
Join the next room.
Answer: No answer needed.
Congratulations on completing Splunk: The Basics!!!
Congratulations on completing Splunk: The Basics. Splunk is such as big name in the world of SIEMs, and that’s why it was awesome to get an introduction to it. I am not sure how I felt about the final exercises where we had to search for events, without getting an introduction that is.
Come back soon for more walkthroughs of rooms on TryHackMe and HackTheBox, and other Cybersecurity discussions.
